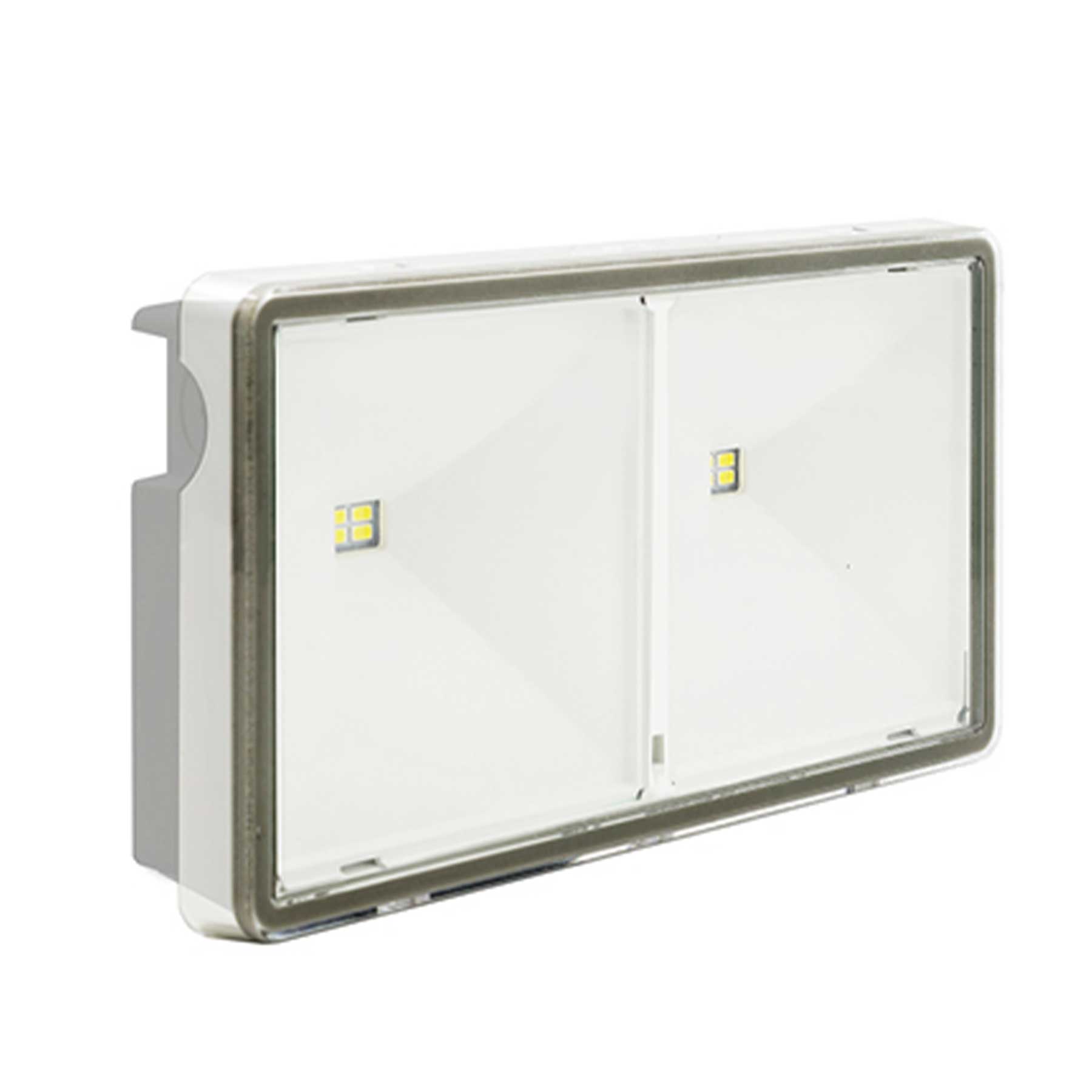

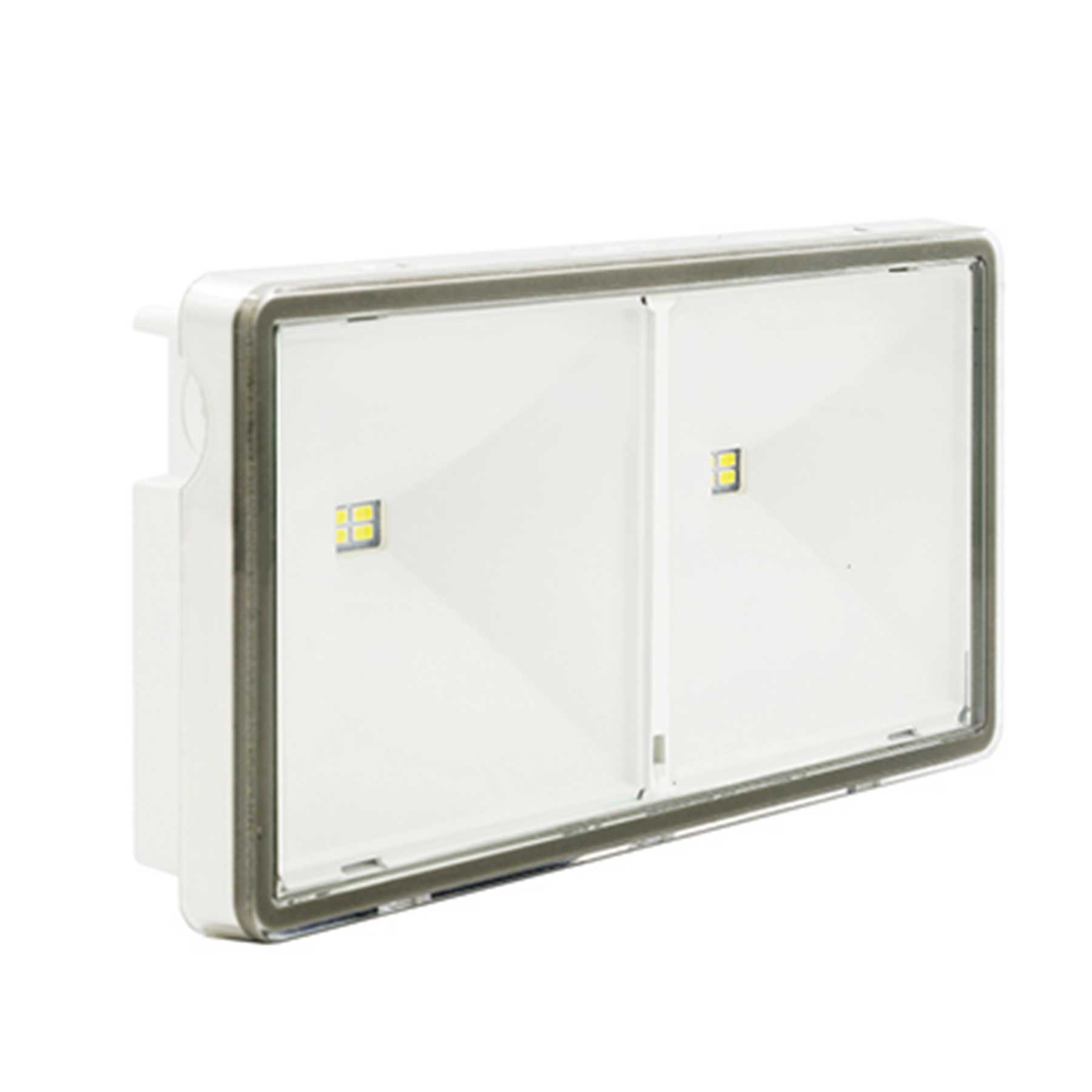

TM.ONTEC S20 M1 ST LED anti-panic emergency lighting IP65

TM Technologie

TM.ONTEC S20 M1 ST LED anti-panic emergency lighting IP65

954 Kč

LED 1.95W 150lm IP65

TM.ONTEC S20 M1 ST LED is a highly durable IP65 rated emergency LED light , ideal for exterior areas and industrial escape routes. It offers universal installation thanks to a wide range of accessories and two main functions: marking the direction of evacuation (visible from up to 20 metres with a flag or retractable pictogram) and illuminating open spaces. The pictogram is neatly mounted without visible mounting elements, and the light is available in two modes - NM (lights only during an outage) and M (lights permanently). In the event of a power failure, it provides uninterrupted illumination for a minimum of 1 hourthus guaranteeing enough time for a safe evacuation. Its robust construction makes it suitable for harsh environments such as industrial sites, car parks, warehouses or public buildings. The ST version is designed for applications with standard requirements and requires regular manual checks.

▾ Zobrazit více

Working mode: NM

NM
M

Product variants

In stock at the supplier (we will deliver within ) In stock, ready to ship

Personal collection available at ILUMIX light

Usually ready in 4 hours

Technical data

Výkon: 1.95W

Světelný tok: 150lm

Varianta montáže: Wall

Typ světelného zdroje: LED

Stupeň krytí: IP65

Životnost (h): 50.000h

Materiál: PC

Povrchová úprava: White

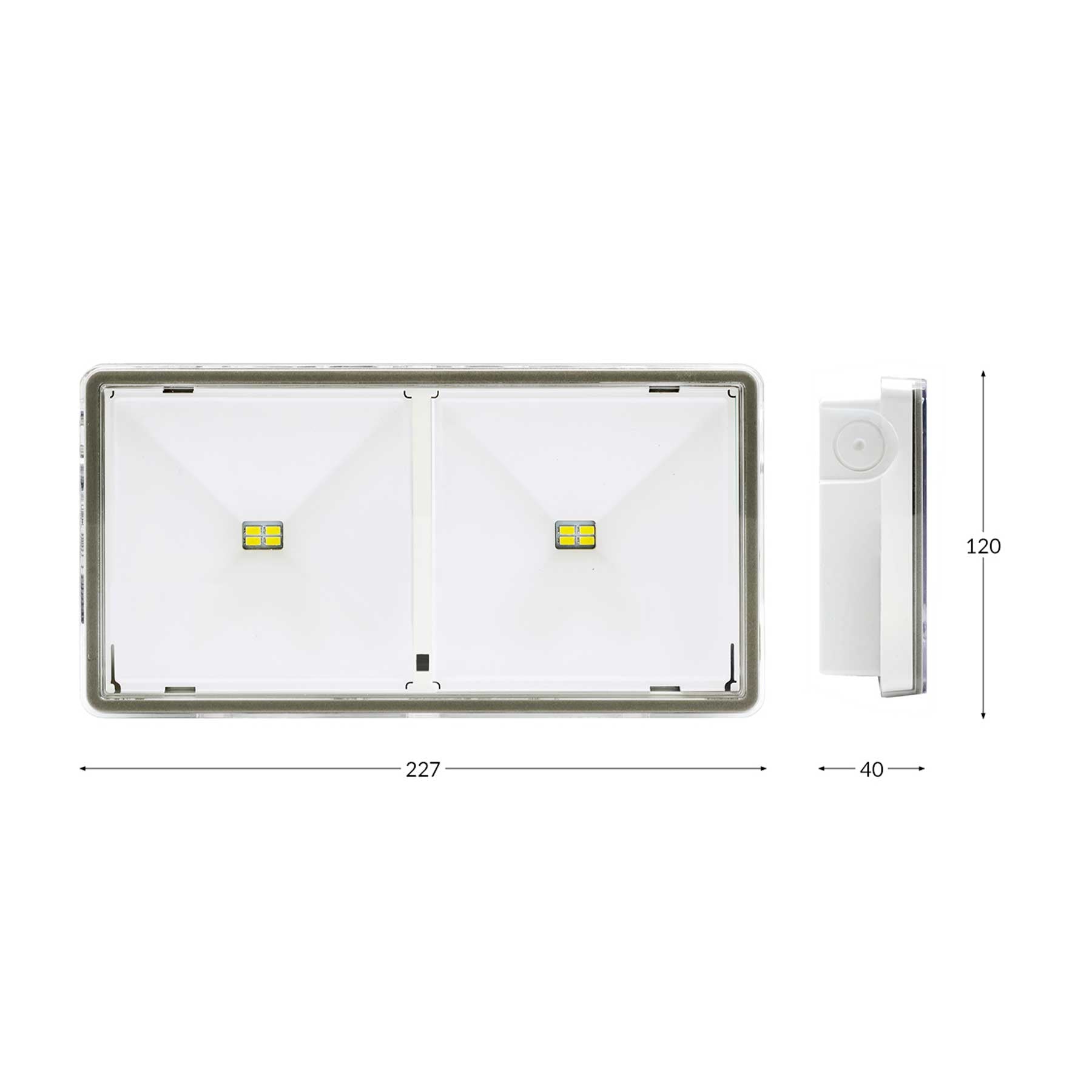

Rozměr: 227x120x40mm

Napětí: 210-250V AC, 50/60Hz

Elektrická třída: II

Assembly instructions

Stáhnout návod

Data sheet

Stáhnout data sheet

3D model

Pro stažení 3D modelu se přihlaste nebo zaregistrujte.

LDT data

Long battery life

Although light is primarily mains powered, its built-in battery guarantees at least 60 minutes of light during a power failure. Interestingly, this function works reliably even in low temperatures (down to -20 °C), making it an ideal choice for exterior installations in both temperate and cold climates. Moreover, thanks to its dust and water resistance (IP65), light can easily withstand rain, snow and dusty environments.

Unique pull-out pictogram system

The Ontec S20 M1 LED S uses an innovative retractable pictogram that ensures perfect visibility of the evacuation direction even at longer distances. Interestingly, the pictogram can be easily replaced or adapted to the specific requirements of the facility, while the installation remains discreet and without visible screws or fasteners. This design element not only improves aesthetics but also increases resistance to vandalism.
